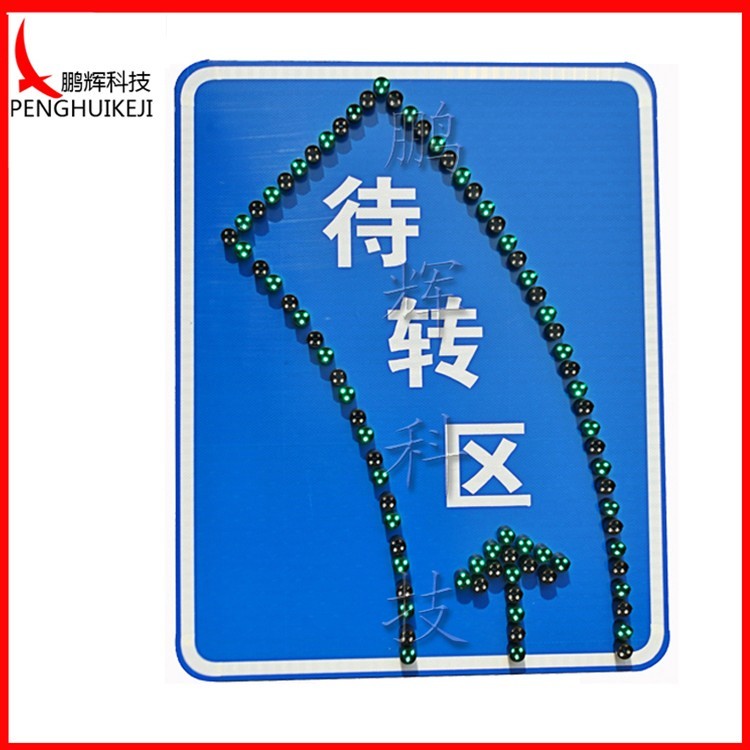

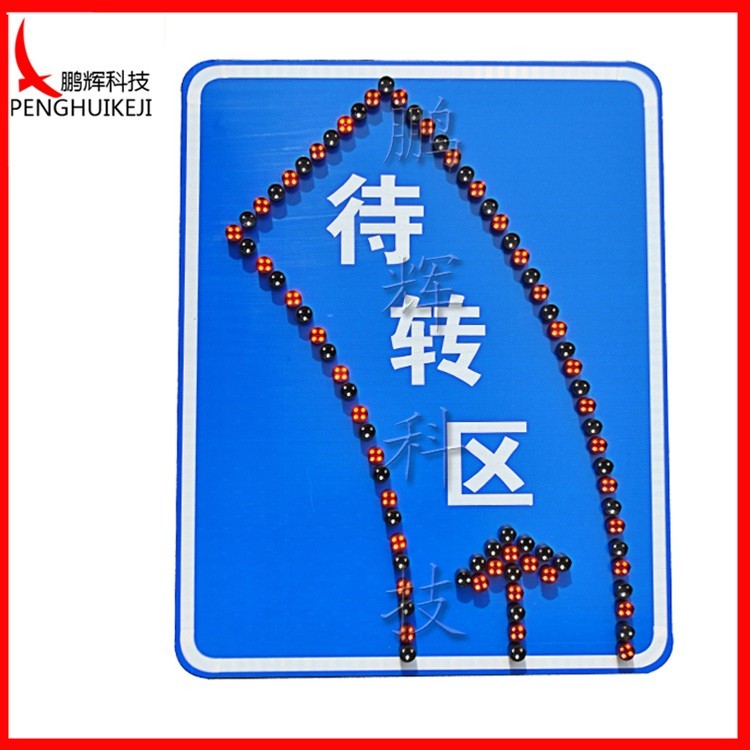

Sign product
Performance indicators:
980 * 780 * 2 mm
Using solar power, light during the day and night automatically light flashing
Night direct visual distance: 1200 m >
Illuminator intensity: day: green/red: > 18000 MCD/star, night: red/green > 8000 MCD/star
Reflective material: super grade reflective film, blue, white, white zebra crossing, made according to the national standard requirement.
Power supply: the signal line of power supply
Luminous state: normally on
Signal representation: white reflective turn to a zebra crossing with the arrow when the red light at the same time, said no turn into stay area
When a green light on both sides of a zebra crossing, end solid red light, cross the arrow when the green light, said can turn into stay area for line;
When a zebra crossing, horizontal lines and arrows glow green at the same time, said left them
Can choose fonts built-in illuminator, font all reflective light, no light during the day, automatically light up at night.
To turn signal form aluminum enclosure structure is used to mark, please see details on installation diagram, set on the rail, vertical set back slot, set on the vertical bar, lateral set back slot.
Meet the rain, salt fog, etc
Weather: > 8 years
