Motor vehicle signal lamp
The product description

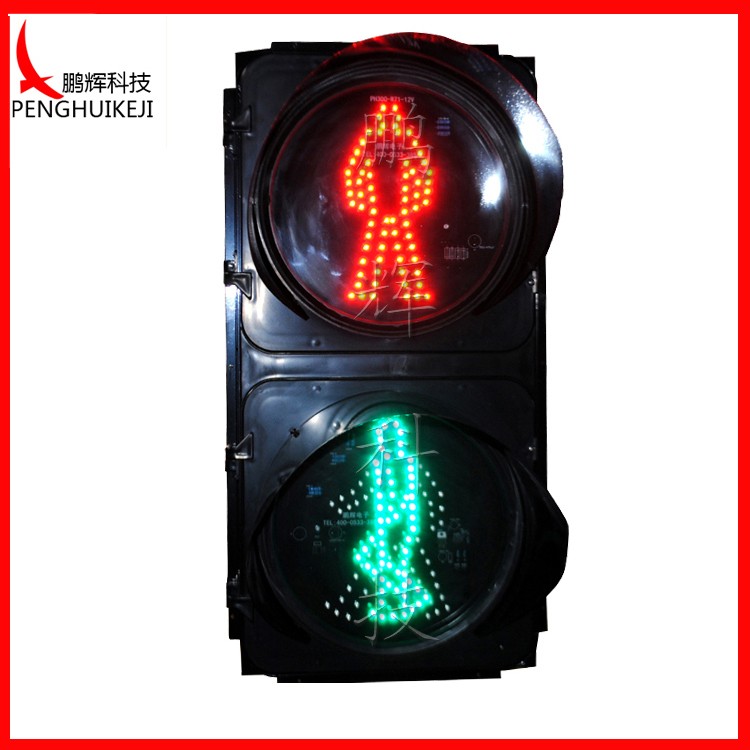

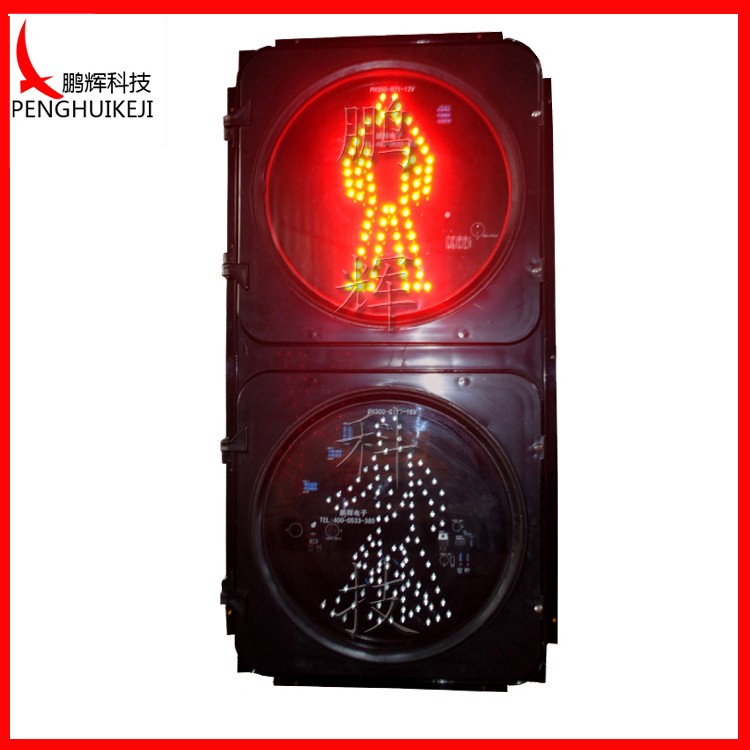

In red on the pedestrian pattern, for the green design of pedestrian are displayed, including green pedestrian pattern can be dynamic.
Product features
The indicators meet the People's Republic of ChinaGB14887-2011Standard for road traffic lights.
Super bright imported four elementsLEDThe wick, uniform colour, perspective, visual range yuan, long service life.
Adopt silicon rubber seal, dustproof, waterproof, flame retardant, effectively put an end to all kinds of hidden dangers.
ginseng The number
gauge G: phi300, phi400, phi500
Lamp shell material:PC, aluminum alloy, die-casting aluminum
Installation method: horizontal, vertical loading
Light life: p10Thousands of hours
Center wavelength: red625nm, green505nm
Resistance to A:- 40℃~ + 85℃
Working voltage:DC12V/24V,AC(220Plus or minus20%)V(a) optional
Visual Angle: p30°
Visual range: p500m
Warm performance: air relative humidity5%~95%(no condensate)
Insulation resistance: >10M omega.
Wind loading:145m/h
Enclosure protection grade:IP53
