Integrated signal lamp
Product description:
For red, green,peopleWith the screen display, for red and greenThe countdownConfiguration, with screen display, solar energy lamp shell and a connection rod body, plastic spraying treatment on the surface, the novel generous.
Product features:
The indicators in line with the GB14887-2011 of the People's Republic of China《Road traffic signals》Standard.
Super bright imported four elementsLED the wick, uniform colour, perspective, visual range yuan, long service life.
Adopt silicon rubber seal, dustproof, waterproof, flame retardant, effectively put an end to all kinds of hidden dangers.
ginseng The number:

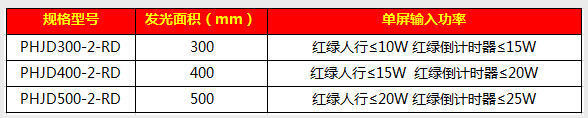

gauge G: phiIn 300,phiIn 400,phi500
Lamp shell material:Hot galvanized, plastic spraying
Installation method: vertical loading
High degree of: according to customer requirements
Light life: 100000 hours or more
Center wavelength. Red and 625 nm、Green 505 - nm
40 ℃ temperature resistance: -~+ 85 ℃
Working voltage: DC12V / 24 V, AC (220 + / - 20%) V (choose one)
Visual Angle: 30 ° or greater
Visual distance: 500 m or more
Warm performance: air relative humidity of 5%~95% (without condensate)
Insulation resistance: > 10M omega.
Wind loading:145m/h
Enclosure protection grade: IP53
